92-1548 TPMS Programming Tool

NAPA® Echlin's 92-1548 Tire Pressure Monitoring System Programming Tool gives you everything you need to perform efficient TPMS repairs and service, including an all-inclusive TPMS diagnostic and programming tool.

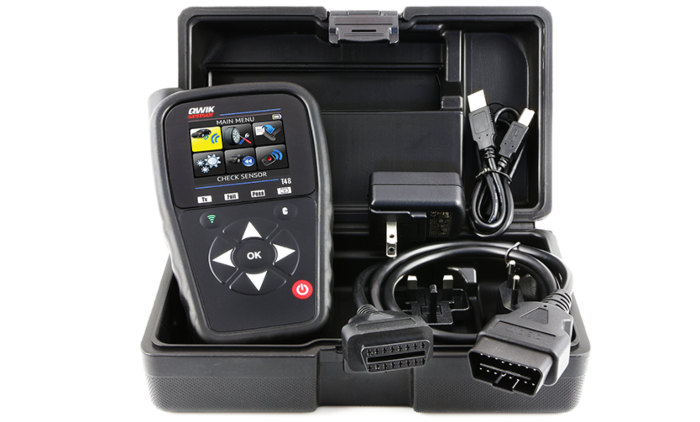

Tire Pressure Monitoring System Programing Tool (T48000) from Standard Motor Products

92-1548 Features

  • Comprehensive make/model/year-specific relearn procedures built in to the tool, which speeds up the repair process and saves you money
  • Built-in OBD Module with Quick Connect Cable allows for simple and easy OBDII transfers without the need for additional accessories
  • Programs universal and QWIK-SENSOR® multi-coverage TPMS sensors
  • Programs QWIK-SENSOR® Universal Programmable TPMS Sensors by create, copy, copy by ODBII, copy by set of sensors or TPMS ID input
  • Wi-Fi capability allows for software updates without plugging into a PC
  • Bluetooth technology allows for wireless connection to peripherals and accessories
  • Full-color, icon-based 2.8” LCD screen allows for easy navigation
  • PC-based software ensures that the tool stays up to date when new TPMS sensors and relearn procedures are introduced
  • Comes with a relearn magnet, OBDII module, 110V wall charger and soft protective tool case

View more TPMS Tool Features

How to Perform TPMS Reset via OBDII

Our 92-1548 lets you perform TPMS reset via OBDII on applicable vehicles, which make up 40% of the TPMS market.

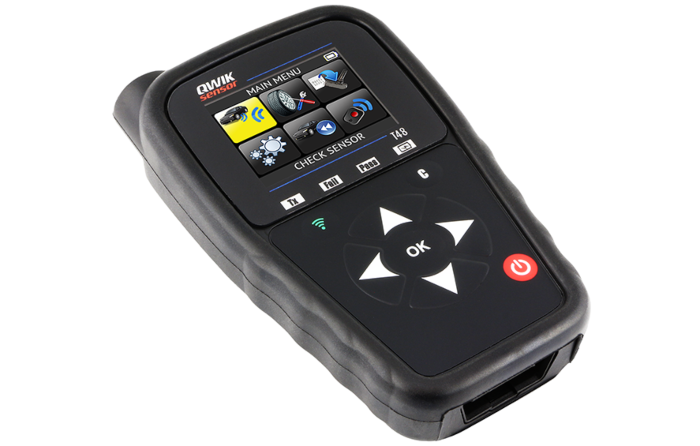

Tire Pressure Monitoring System Programing Tool (T48000) from Standard Motor Products

Here's How To Do It:

1. Use a tool to read all of the sensor IDs

2. Turn on the ignition

3. Connect the tool to the OBDII port

4. The relearn should be complete within 2 minutes
