Coolant Temperature Sensors

The coolant temperature sensor monitors coolant temperature and then displays the measurement to the vehicle’s occupants. The engine can be in danger of damage if it operates at too high of a temperature. The coolant temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting. Each Coolant Temperature Sensor is environmental and 100% functional tested to ensure optimum performance and durability out of the box.

  • coolanttemp1jpg

    Glass fiber-reinforced plastic polymer connector ensures excellent dimensional stability and proper mating connector fit across temperature extremes

  • coolanttemp2jpg

    Precision-machined brass housing maximizes thermal conductivity between sensor body and coolant

  • coolanttemp3jpg

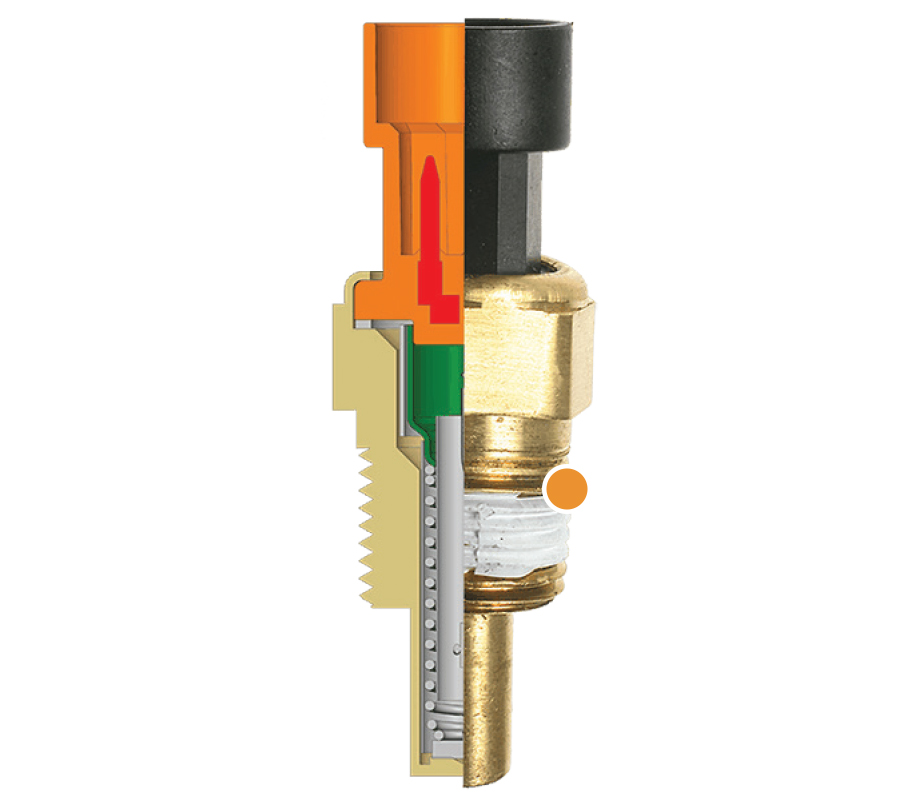

    Tapered pipe threads with pre-applied sealant ensure tight, leak-free fit

  • coolanttemp4jpg

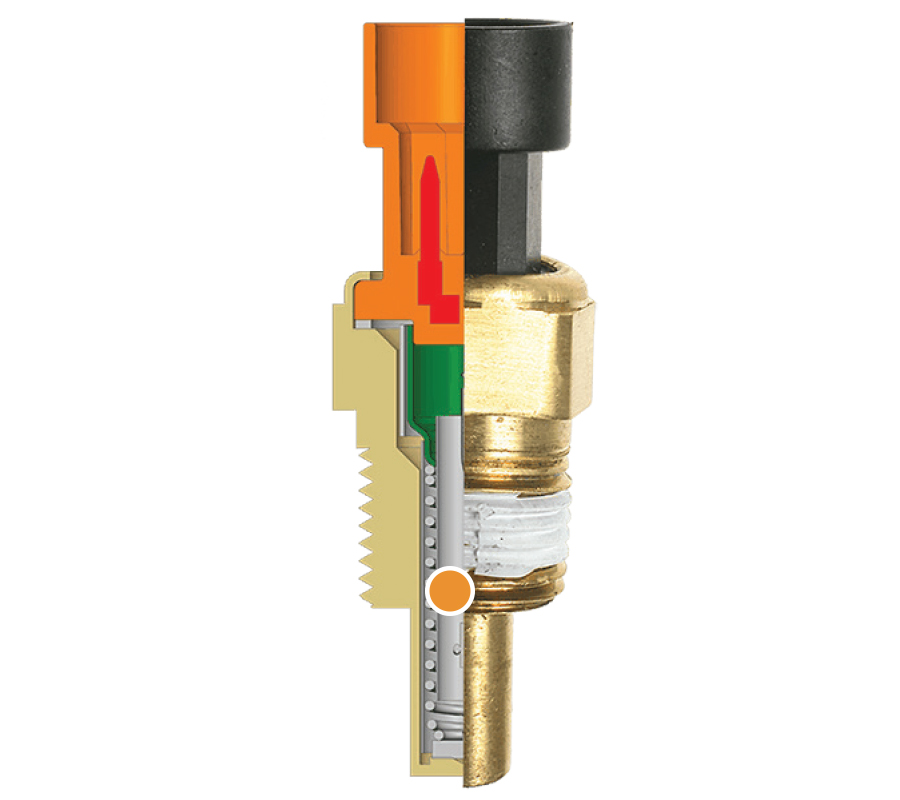

    Grease applied inside brass housing facilitates heat transfer with thermistors

  • coolanttemp5jpg

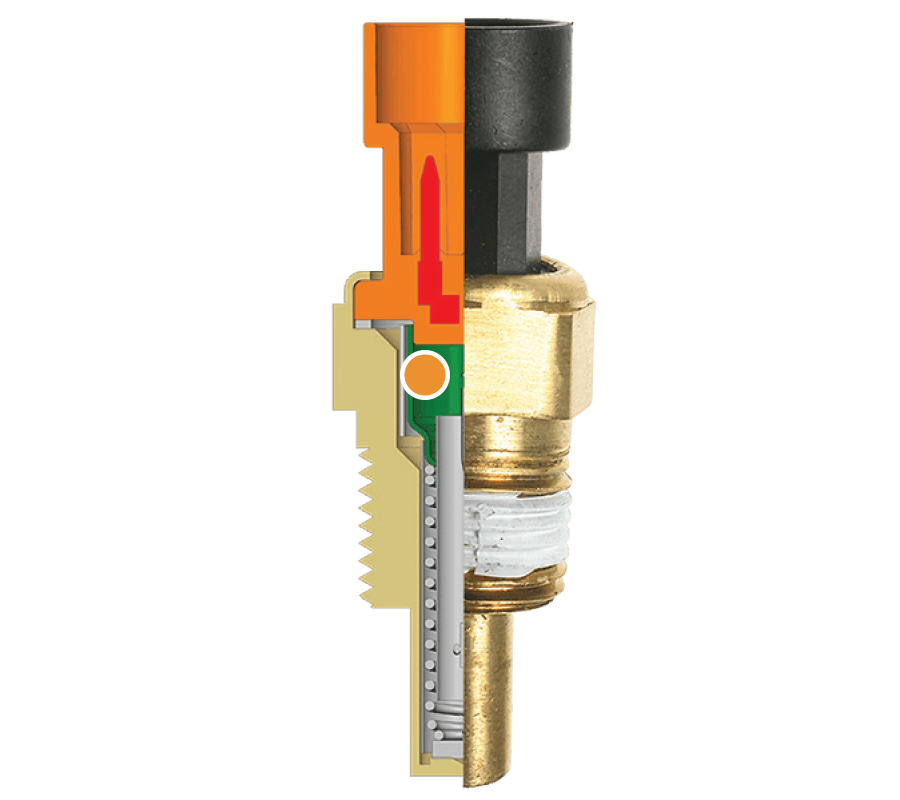

    100% factory-tested for proper resistance value at specified temperature

Engine Coolant Temp Sensor Replacement - Dodge, Chrysler, Plymouth 2.7L

This video dishes out tips for replacing a coolant temperature sensor on a 2.7 liter engine. Here's what you need to know for the job:
