Anti-lock Brake (ABS) Sensors

NAPA® Echlin® ABS Speed Sensors are designed to provide consistent performance, matching the OE for form, fit and precision function. Features such as superior magnetic circuit materials are engineered into our sensors to deliver higher voltage output preventing ABS system failure.

Superior design is one reason NAPA® Echlin's ABS sensors perform equal to or better than the original.

A Closer Look: NAPA® Echlin® ABS Speed Sensors

The anti-lock braking system uses an ABS or wheel sensor to monitor the wheel speed and send this information to the ABS computer. The ABS computer uses this information to prevent the brakes from locking during a stop.

NAPA® Echlin® ABS sensor line has complete coverage for domestic and import applications with over 2100 ABS numbers cataloged – and growing.

  • abs-speed-sensor-1png

    OE connectors and terminals are used to ensure accurate, water-tight connection to the engine wire harness

  • abs-speed-sensor-2png

    Grommets and wire clips are included on the harness to ensure proper mounting and routing within the car chassis

  • abs-speed-sensor-3png

    Wire harness comes with protective sleeve to prevent wires from chafing and creating short circuits

  • abs-speed-sensor-4png

    Sensors are 100% tested for proper functioning

  • abs-speed-sensor-5png

    Sensor housing is made from high quality glass reinforced plastic resin with both high temperature and environmental protection resistance

What makes NAPA Echlin ABS Sensors the best.

  • The ABS sensor is typically located in each wheel hub/rotor on a four channel ABS system.Some rear wheel drive applications have the sensor mounted in the rear differential
  • Generally these sensors will fail as a result of clogging from metallic debris, brake dust or dirt due to exposure to the harsh elements
  • A failing sensor can illuminate the MIL or ABS warning lamp, and may cause failure of the anti-lock braking system to operate safely and properly
  • An ABS sensor can be visually inspected and the wire winding and sensor harness can be tested for opens, shorts and proper factory specified resistance with an ohmmeter

ABS Sensors Testing – See how the rest of the pack stacks up

We left no stone unturned; performing extensive laboratory and real life testing that included measuring and comparing shaft speed vs. delta voltage, output voltage and variation to OE, magnetic field strength, air gap, output wave form, pulse width as well as a complete physical product comparison to OE.

The Findings

Competition ABS Sensors



  • No Consistency in signal output performance.
  • Inferior materials in the magnetic circuit which results in low voltage output and can lead to ABS system failure.
  • No Consistency in critical sensor dimensions which establish the gap between the sensor tip and target wheel which can lead to the sensor tip hitting the spinning target wheel causing sensor damage.
  • Inadequate quality inspection and product testing.
  • No Consistency in matching OE for form, fit and critical function.

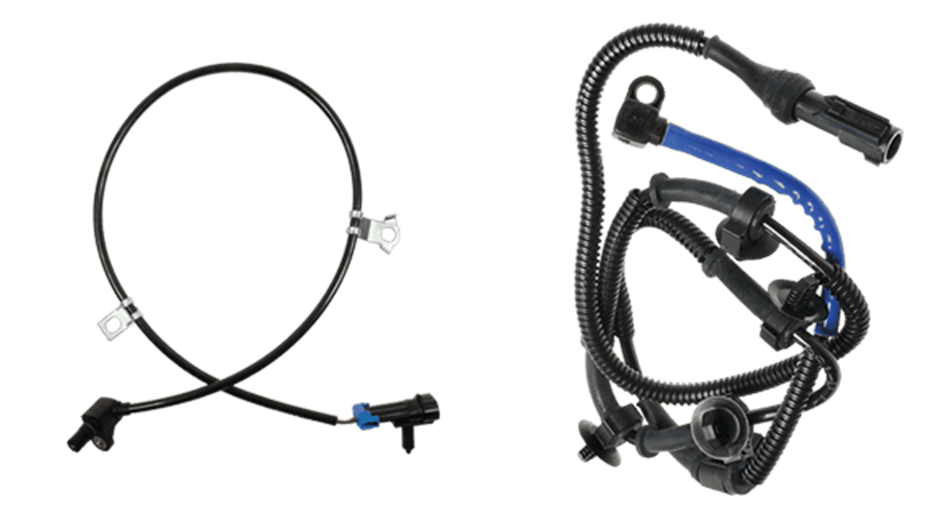

NAPA® Echlin®: ABS Sensor# 530581 (GM 02-95; ranked in the top 10 sellers) matches OE for output voltage, resistance, trigger wheel gap and all critical fit, form, and function measurables.

Competition: 29%-51% lower voltage output when compared to OE leading to potential ABS system failure. Incorrect mounting bracket does not match OE.

NAPA® Echlin®: ABS Sensor# 530916 (Ford 09-95; ranked in the top 10 sellers) matches OE for output voltage, resistance, trigger wheel gap and all critical fit, form, and function measurables.

Competition: 45%-74% lower voltage output when compared to OE leading to potential ABS system failure. Inconsistent winding resistance, electrical inductance and magnetic field orientation resulting in poor sensor performance. Inconsistent gap between sensor tip and trigger wheel leading to potential sensor tip damage.

NAPA® Echlin® ABS Wheel Speed Sensors Vs. The Aftermarket Competition

The NAPA® Echlin® 531339 uses microsensors to produce the unique forward and reverse signals that modern vehicles require to keep electronic safety systems (Hill Hold Assist, ESC and Automated Braking) working correctly.

The NAPA® Echlin® Multi-Directional ABS Wheel Speed Sensor was tested on a 2020 Toyota Tacoma against 7 other sensors. Only NAPA® Echlin® passed.

NAPA<sup>®</sup> Echlin<sup>®</sup> ABS Wheel Speed Sensors Vs. The Aftermarket Competition

Multi-directional ABS wheel speed sensors from the NAPA® Echlin® aftermarket competitors can't measure vehicle direction.

These sensors don't give the ECU enough information, potentially disrupting electronic safety systems.
